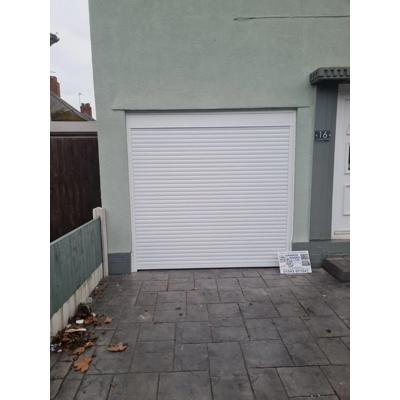

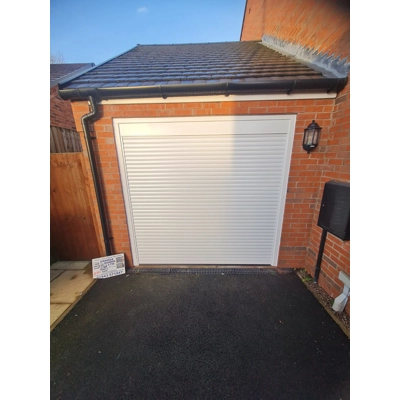

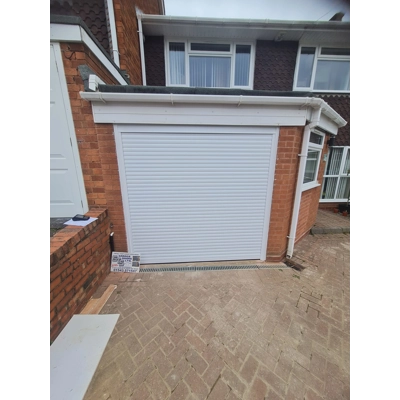

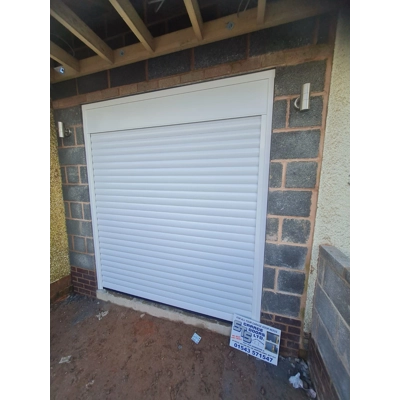

Fully Fitted 77mm Electric Roller Door

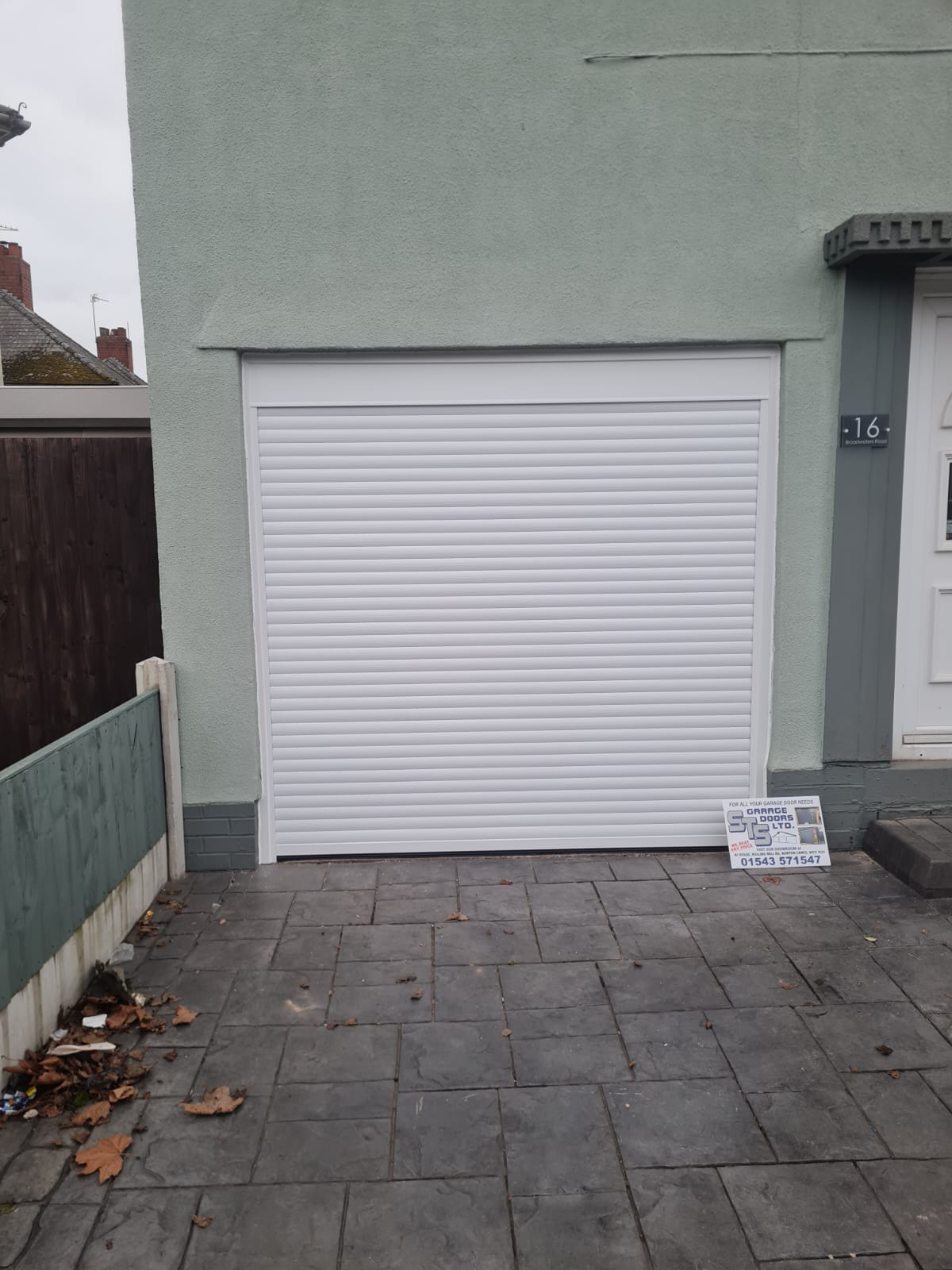

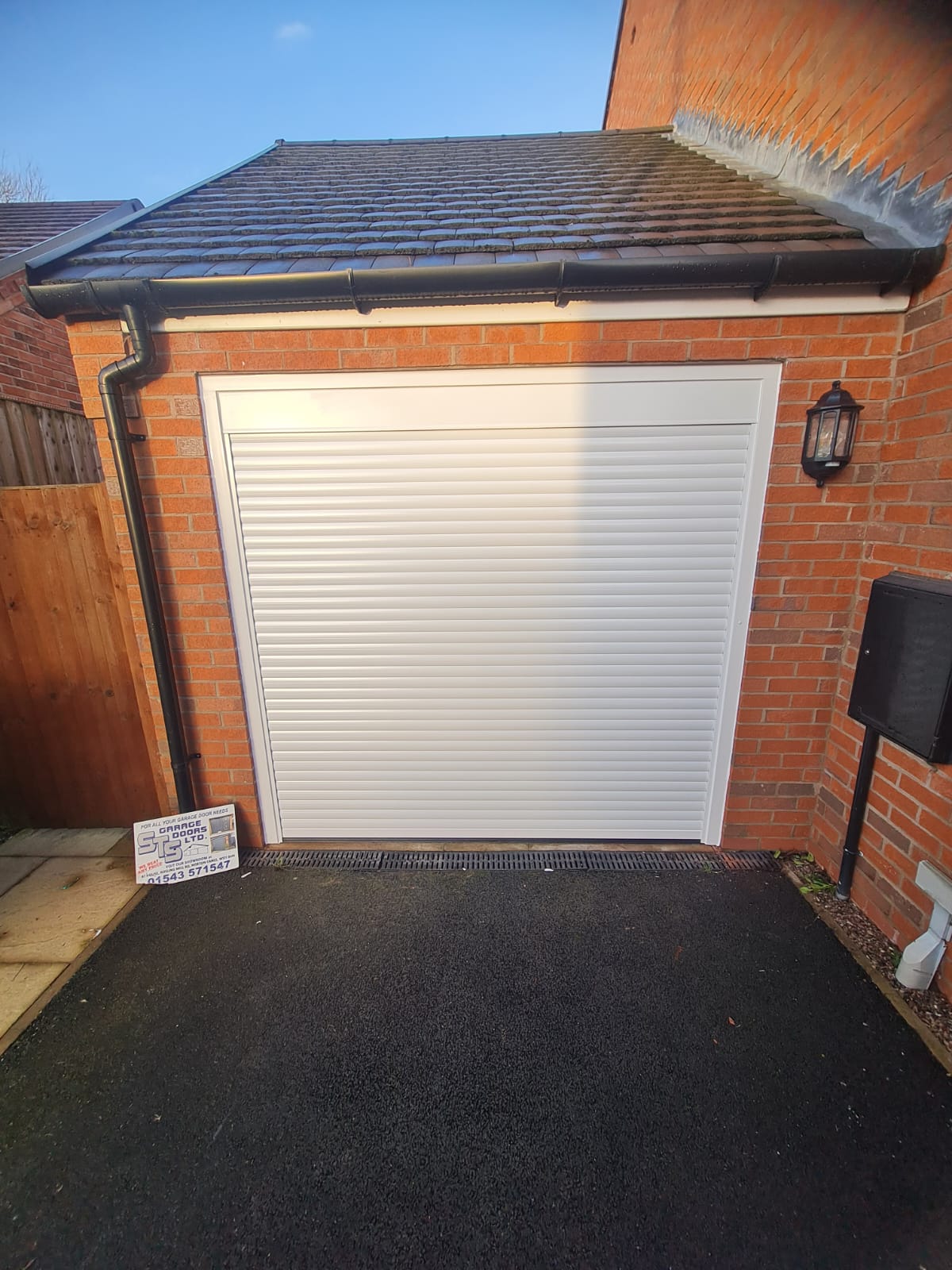

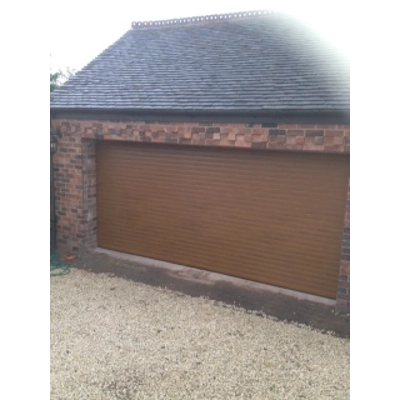

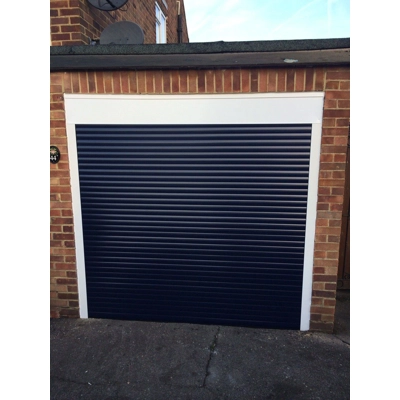

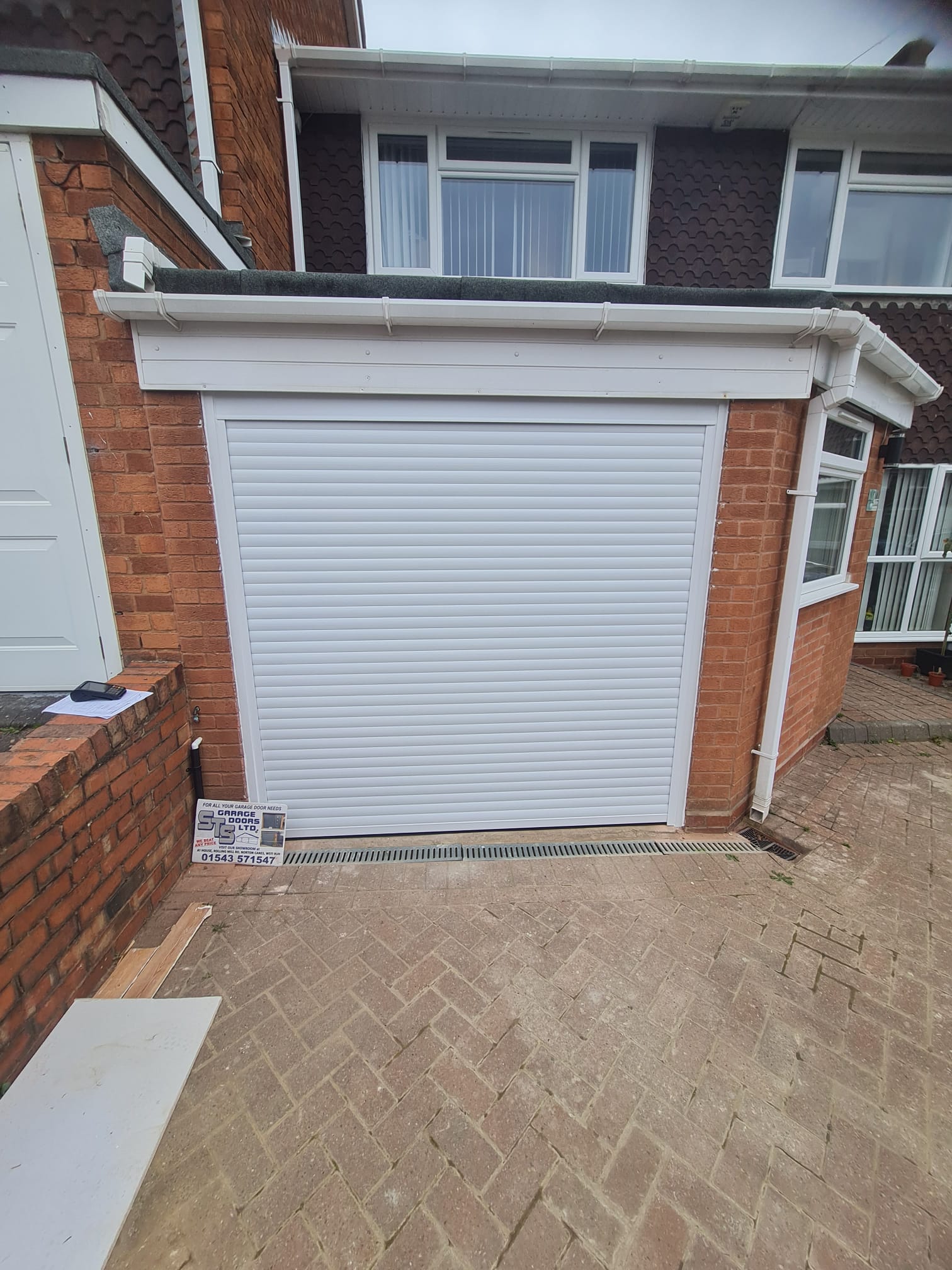

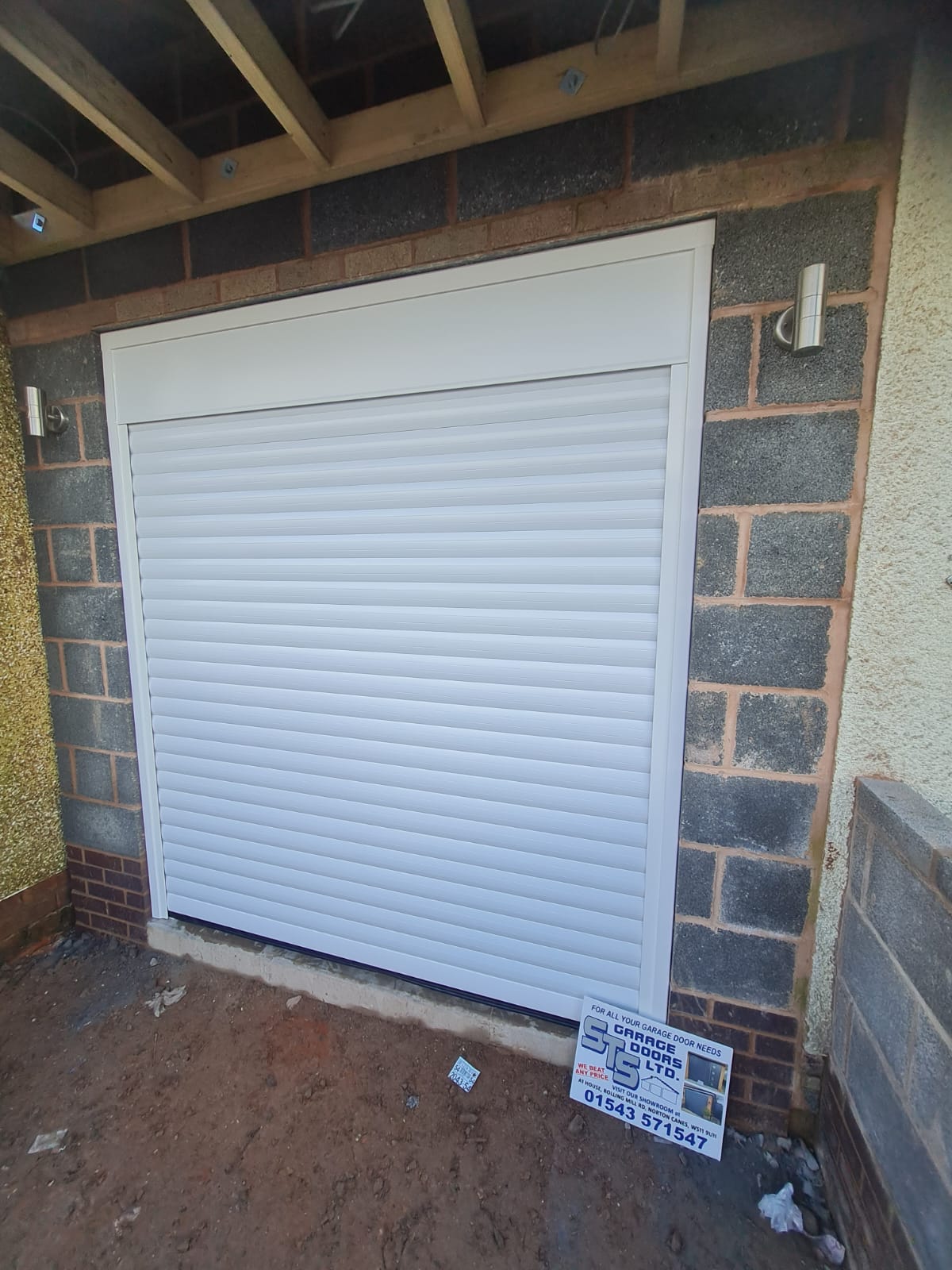

STS 77mm Insulated Aluminium Electric Roller Garage Door
Our STS 77mm insulated aluminium electric roller garage door is professionally installed by our own fully qualified installation team, ensuring a high-quality finish and reliable performance.
The door is designed to suit an over-guide width of 7ft and a guide height of 7ft (2300mm x 2134mm). Each door is custom manufactured to fit your specific opening.
Installation options include:
-
Face Fix – fitted behind the opening
-
Reveal Fix – fitted between the opening
-
Combination Fix – a mix of both methods depending on your garage structure
Standard Features
- Our roller garage doors come with the following features as standard:
-
77mm foam-filled insulated aluminium slats
-
White aluminium guide rails
-
White 300mm end plates
-
White full roller box housing
-
Electric operation with wall-mounted push button
(Remote controls are optional extras) -
Internal manual override for emergency operation
-
Auto-locking system for added security
-
Brush pile and double neoprene seals in the guides for improved insulation
-
Heavy-duty rubber weather seal fitted to the bottom of the door
-
Guide rollers to feed the curtain smoothly into the guides, reducing wear and ensuring quieter operation
Size & Technical Information
- Opening Width
Over-guide size minus 75mm each side for doors up to 3000mm wide
Over-guide size minus 90mm each side for doors over 3000mm wide - Opening Height
Top of plate size minus 300mm roll-up space plus 1 slat (77mm)
Total required space: 377mm
Warranty
Your garage door is supplied with a 2-year manufacturer’s warranty for peace of mind.
